ViewAIB 3N XL ZK rebate perimeter seal
Article number: 310112923

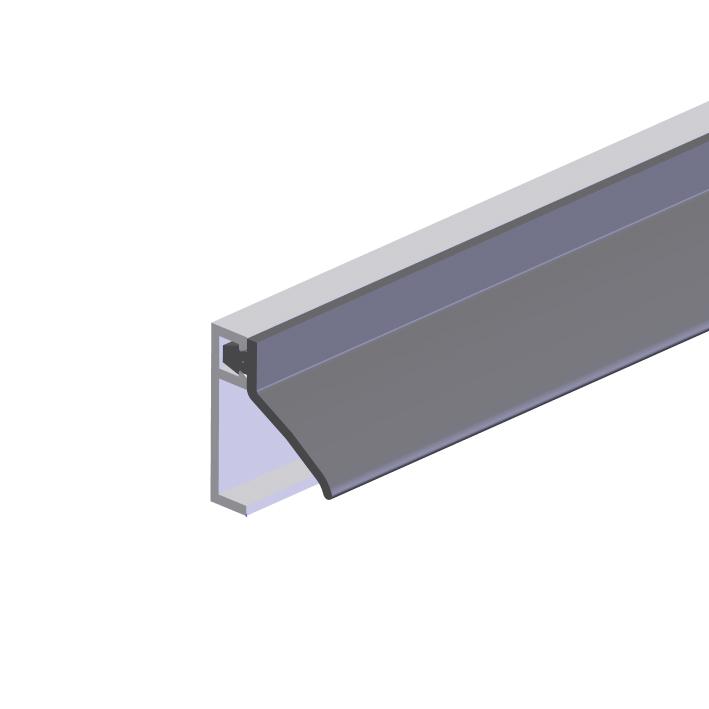

AIB 3N XL stop seal for mounting in the rebate on doors and windows that open to the inside and outside. Fitted with self-adhesive tape for effective mounting, especially on the hinge side of the door.
Features
- Extensive sealing range, maximum of 13 mm
- Rebate width 16 mm
- Silicone seal
- Length 230 cm
- Class: W54177 (according to NEN-EN 12365-1)
Installation instruction
To be positioned in the 6mm rebate space between the window or door and the frame. For correct mounting on the hinge side, see image B. For correct mounting on the closing side for inward opening doors and windows, see image A.
| Length | Art.nr. | Colour | EAN (pc.) | Eenheid |
|---|---|---|---|---|
| 230cm. | 310112923 | Alu. | 8711286260416 | 25 pc. |
| 300cm. | 310112930 | Alu. | 8711286260423 | 25 pc. |
