8150 ACB Peripheral frame seal
Plastic frame seal for doors and windows with a 12 mm rebate height. Only welding corners.
View1801 SCF Peripheral frame seal
Article number: 680504901.1

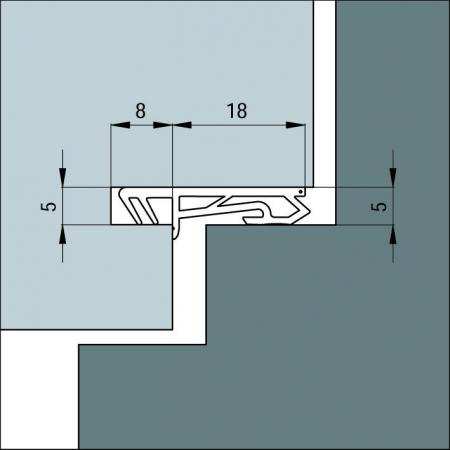

Peripheral silicone seal for the hinged element of doors and windows with a 18 mm rebate height.
Features
- Flexible plastic material
- Low closing resistance
- Easily cut to create a mitre joint
- Reel, 150 m length
- Rebate height 18 mm
- Maximum gap 7 mm
- Groove dimensions (w x h): 5 x 8 mm
Installation instruction
Unroll the seal from the reel, inserting it into the groove as you go and making sure that you do not stretch the seal.
Peripheral silicone seal for the hinged element of doors and windows with an 18 mm rebate height.
| Length | Art.nr. | Colour | EAN (pc.) | Qty. |
|---|---|---|---|---|
| na. | 680504901.1 | Black | 8711286805235 | 150m. |
