EllenMatic Extra

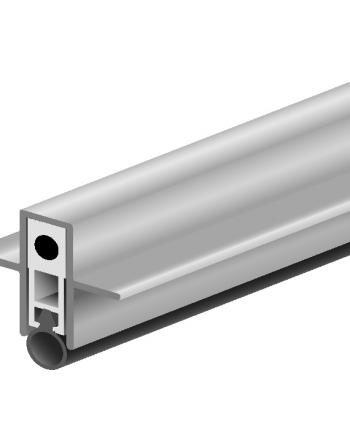

EllenMatic Extra automatic drop seal, automatically operated seal for interior and exterior doors in a sheltered environment.
ViewEllenMatic Uni-Proof
Article number: 203700124
Universal automatic drop seal, for keeping out draughts, suitable for mounting in the groove under wooden doors.
Features
- Automatic sealing
- Protects against draughts
- Aluminium
- RVS mounting plates
- Groove dimensions 15 x 30 mm
- Plastic seal material
- Manually operated pressure adjustment knob
- Can be cut down by 150 mm
- Maximum gap 20 mm
| Length | art.nr. | Colour | EAN (pc.) | Qty. |
|---|---|---|---|---|
| 628mm. | 203700121 | Alu. | 8711286234080 | 10 pc. |
| 728mm. | 203700122 | Alu. | 8711286234097 | 10 pc. |
| 828mm. | 203700123 | Alu. | 8711286234202 | 10 pc. |
| 928mm. | 203700124 | Alu. | 8711286234219 | 10 pc. |
| 1028mm. | 203700125 | Alu. | 8711286234226 | 10 pc. |
| 1128mm. | 203700126 | Alu. | 8711286234233 | 10 pc. |
| 1228mm. | 203700127 | Alu. | 8711286234240 | 10 pc. |
Shortenability Ellenmatic Draught Excluders
All standard lengths can be shortened with 15 cm. For other lengths this is different. In the table below you can find the length of your draught excluder and the length to which it can be shortened maximally.
| From | To | shortest length | |
|---|---|---|---|
| 300 | 480 | 301 | |
| 481 | 730 | 481 | |
| 731 | 930 | 661 | |
| 931 | 1030 | 841 | |
| 1031 | 1230 | 1021 | |
| 1231 | 1380 | 1201 | |
| 1381 | 1600 | 1381 |
